View detailsEx Lighting Fixtures: How They Work and How to Choose Them
Ex lighting fixtures are certified luminaires designed to safely operate in hazardous areas by containing ignition sources and preventing sparks, heat, or faults from igniting flammable gases, vapors, or dust.
That’s the official line.
But out in the field, the question is simpler—and harsher:
Will this fixture still be safe after five years of corrosion, cleaning, vibration… and shortcuts during maintenance?
what ex lighting fixtures actually mean
“Ex” is not a marketing term
“Ex” comes from explosion protection classification under ATEX and IECEx systems.
It defines equipment designed for explosive atmospheres, not just “heavy-duty” lighting.
Typical markings:
- Ex db → flameproof enclosure
- Ex eb → increased safety
- Ex mb → encapsulation
According to IEC 60079 series standards, each marking defines a specific protection method—not interchangeable, not optional.
Why misunderstanding “Ex” causes real problems
I’ve seen projects where buyers assumed:
“Ex lighting = stronger industrial light”
Result?
Fixtures installed in solvent zones without proper certification—flagged within weeks during inspection.
In hazardous environments, incorrect classification isn’t inefficiency.
It’s non-compliance.
how ex lighting fixtures prevent explosions
It’s about containment, not elimination
A key principle:
Explosion-proof equipment does not prevent ignition internally.
It ensures ignition cannot escape.
According to IEC 60079-1:
- Internal explosion is allowed
- Enclosure must contain pressure
- Flame must cool before exiting
This is mechanical engineering—not electrical magic.
Temperature control is equally critical
Each fixture has a temperature class (T1–T6).
Example:
- T6 → max surface temperature ≤85°C
Why this matters:
Ethanol vapor ignition temperature ≈ 363°C, but safety margins require far lower surface temperatures.

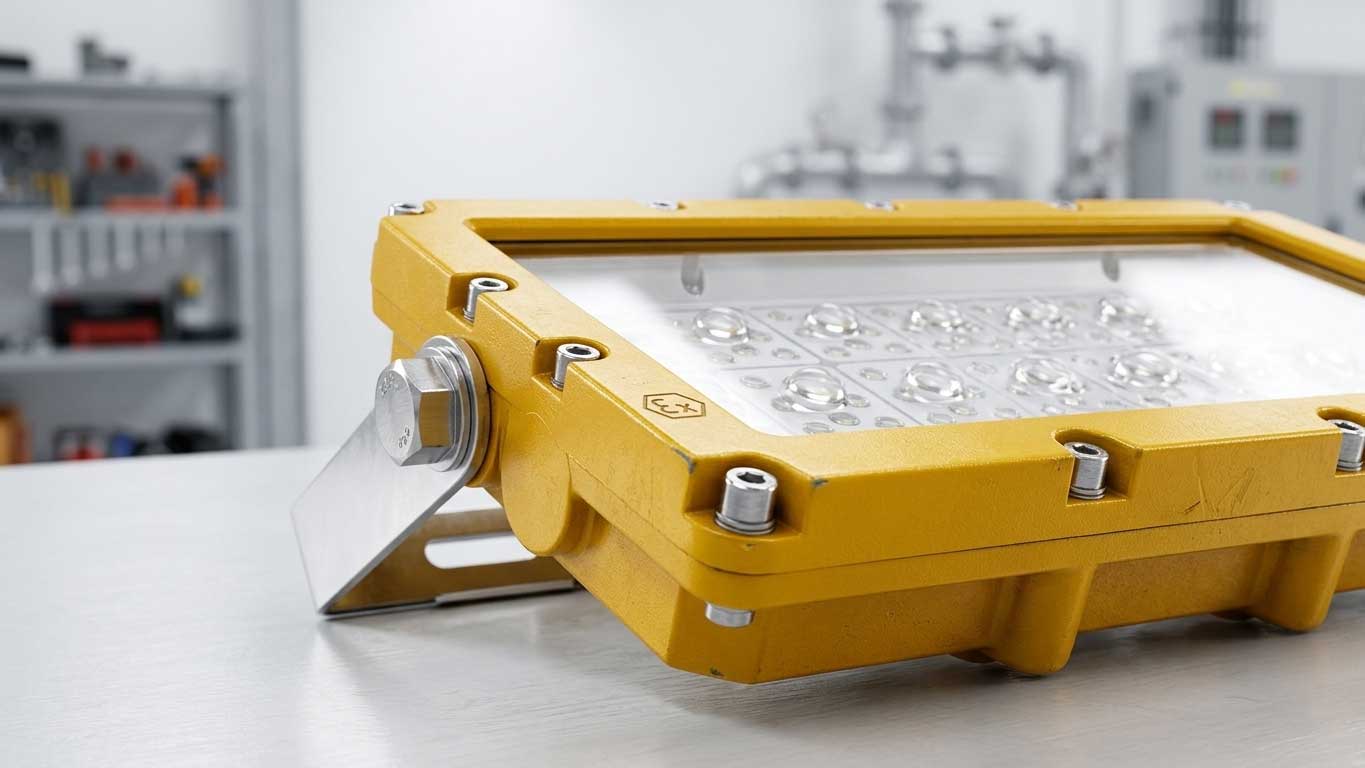

core components of ex lighting fixtures
1. Enclosure material and structure
Common materials:
- Die-cast aluminum
- Stainless steel (304 / 316)
According to the Aluminum Association, aluminum provides excellent heat dissipation—critical for LED longevity.
But material quality varies:
- Low-density casting → hidden porosity
- Weak coating → corrosion ingress
In one coastal installation I audited, corrosion began within 14 months—not due to design, but coating thickness below spec.
2. Flameproof joints
Often invisible—but critical.
Features:
- Threaded or flanged joints
- Controlled gap tolerances
- Heat-dissipating flame paths
Even a minor scratch can compromise certification.
3. Sealing and ingress protection
Typical ratings:
- IP66 → dust-tight, water jets
- IP67 → immersion
- IP69K → high-pressure wash
According to IEC 60529, these ratings define environmental resistance.
In industries like food processing or paint spraying, IP69K is often required—not optional.
4. Optical and impact system
Includes:
- Tempered glass lens
- IK08–IK10 impact resistance
According to IEC 62262, IK10 withstands 20 joules impact.
That’s not theoretical—think dropped tools, pressure cleaning, vibration.

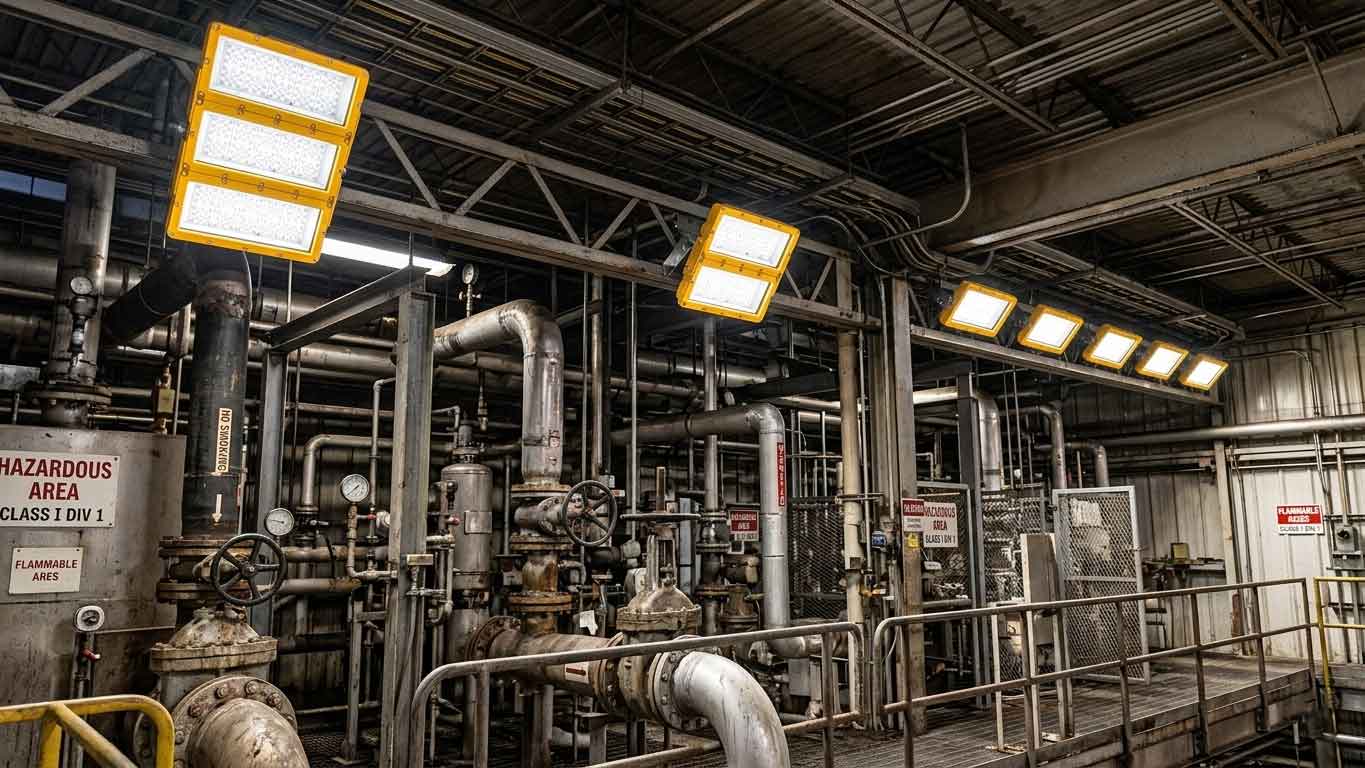

where ex lighting fixtures are used
Typical hazardous environments
Real-world applications:
- Oil & gas facilities

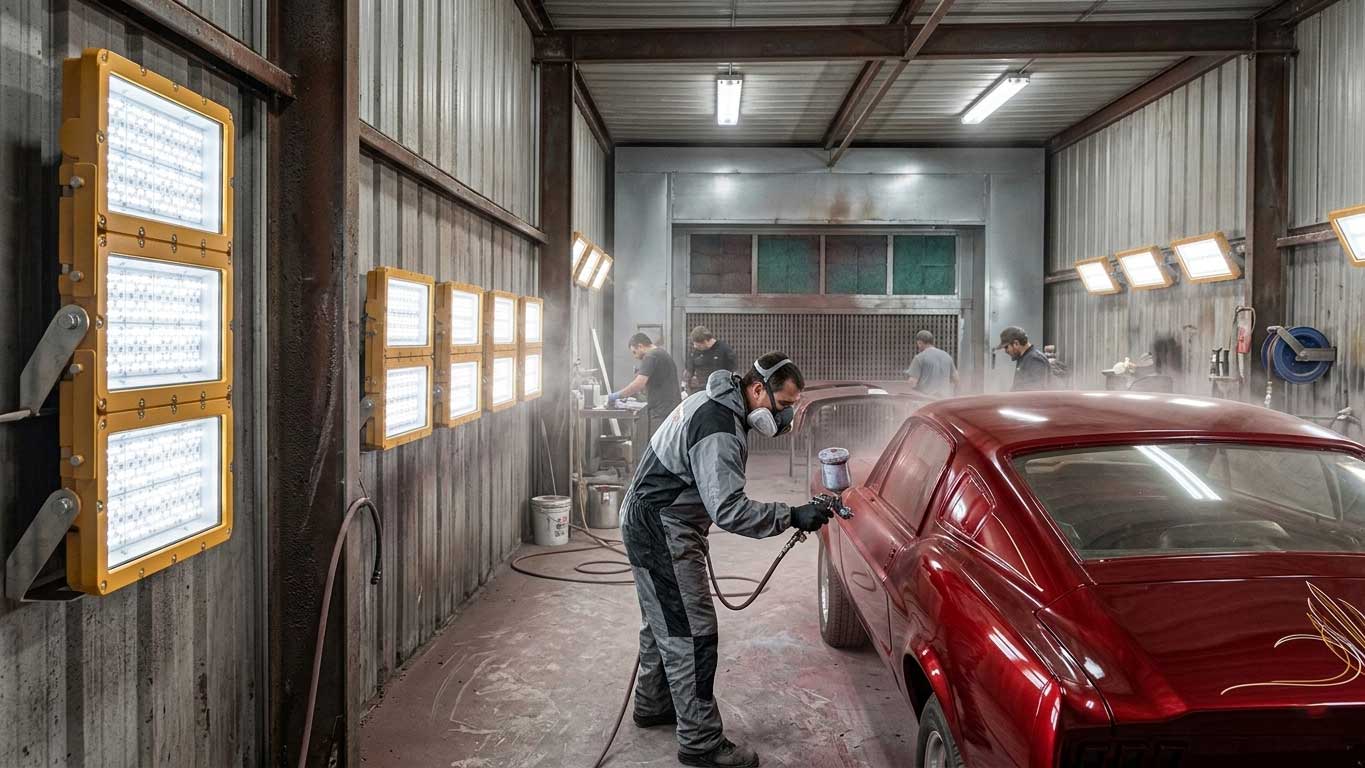

- Paint spray booths (VOC vapors)
- Chemical plants
- Grain silos (dust explosion risk)
- Pharmaceutical production
According to NFPA 70 (NEC), these areas require certified hazardous location equipment.
hazardous area classifications explained
ATEX / IECEx zones
| Zone | Description |
|---|---|
| Zone 0 | Continuous explosive presence |
| Zone 1 | Occasional presence |
| Zone 2 | Rare, short duration |
NEC Class/Division
| Classification | Meaning |
|---|---|
| Class I Div 1 | Gas present regularly |
| Class I Div 2 | Gas present occasionally |
Misclassification is one of the most common—and costly—mistakes.
how to choose the right ex lighting fixtures
Key selection factors
- Hazard classification (Zone / Division)
- Temperature class
- Environmental conditions (humidity, corrosion)
- Cleaning requirements
- Mounting height and layout
Field mistakes to avoid
- Choosing based on wattage only
- Ignoring certification markings
- Underestimating cleaning cycles
I’ve seen fixtures fail not because they were “bad”—but because they weren’t designed for daily high-pressure washdowns.
how SEEKINGLED builds reliable ex lighting fixtures
Design approach
SEEKINGLED focuses on:
- High-density die casting
- Precision-machined flame paths
- Thick anti-corrosion coatings (>100μm)
- ATEX & IECEx compliance
Real-world performance
In a solvent storage retrofit:
- Maintenance reduced by ~40%
- Fixture lifespan significantly extended
Not because of higher lumen output—but because of better structural reliability.
performance comparison
| Feature | Ex Lighting Fixtures | Standard Lighting |
|---|---|---|
| Safety | Certified | None |
| Durability | High | Moderate |
| Maintenance | Lower | Higher |
| Compliance | Required | Not applicable |
faq about ex lighting fixtures
Are Ex lighting fixtures the same as explosion proof?
Often yes—but “Ex” covers multiple protection types beyond flameproof.
Can Ex fixtures be used in normal environments?
Yes, but usually unnecessary and more expensive.
Do they require maintenance?
Yes. Regular inspection of seals and joints is critical.
More content
- How to Choose the Right Explosion-Proof Light?
- explosion proof light fixture – What You Should Know Before Installing One
- LED Explosion Proof Lamp: What You Should Confirm Before Installing in Hazardous Areas
- Ex Proof Lighting Fixtures for Demanding Industrial Environments
- Explosion Proof Light Fixtures: Engineering Insight from the Field
author experience
This article is based on hands-on work across:
- Petrochemical storage facilities
- Paint spray lines
- Coastal industrial plants
Across audits, a recurring pattern:
Over 30% of fixture failures were due to:
- Sealing degradation
- Material corrosion
- Improper installation
—not LED failure.
final insight
When selecting ex lighting fixtures, don’t start with brightness.
Start with:
Will this fixture still maintain its protective integrity after years of real-world stress?
Because in hazardous environments,
lighting doesn’t just illuminate.
It protects.
