Explosion proof lights for paint booth

Explosion proof lights for paint booth are sealed, certified luminaires designed to prevent ignition of flammable vapors while delivering uniform, high-accuracy lighting for coating and inspection tasks.

That’s the straight answer. But in real spray environments, lighting decisions quietly determine safety margins—and whether defects are caught or missed.

why paint booths require explosion proof lighting

Flammable vapors are always present

Inside a paint booth, atomized coatings release volatile organic compounds (VOCs). These form explosive mixtures under the right conditions.

According to NFPA 33 (Standard for Spray Application Using Flammable Materials):

• Electrical equipment in spray areas must be approved for hazardous locations or isolated from the spray zone

This is not theoretical—it’s enforced in inspections.

Ignition risk is often underestimated

In one project I audited, a facility used sealed—but non-certified—LED panels.

They worked fine. Until solvent concentration spiked during a heavy spray cycle.

Nothing exploded—but the system failed compliance immediately.

what defines explosion proof lights for paint booth

1. Certified explosion-proof enclosure

Key certifications include:

• ATEX (Europe)
• IECEx (International)
• UL844 / Class I Div 1 (North America)

These fixtures are designed to:

• Contain internal sparks or arcs
• Prevent flame propagation

According to IEC 60079, enclosures must withstand internal explosion pressure without rupture.

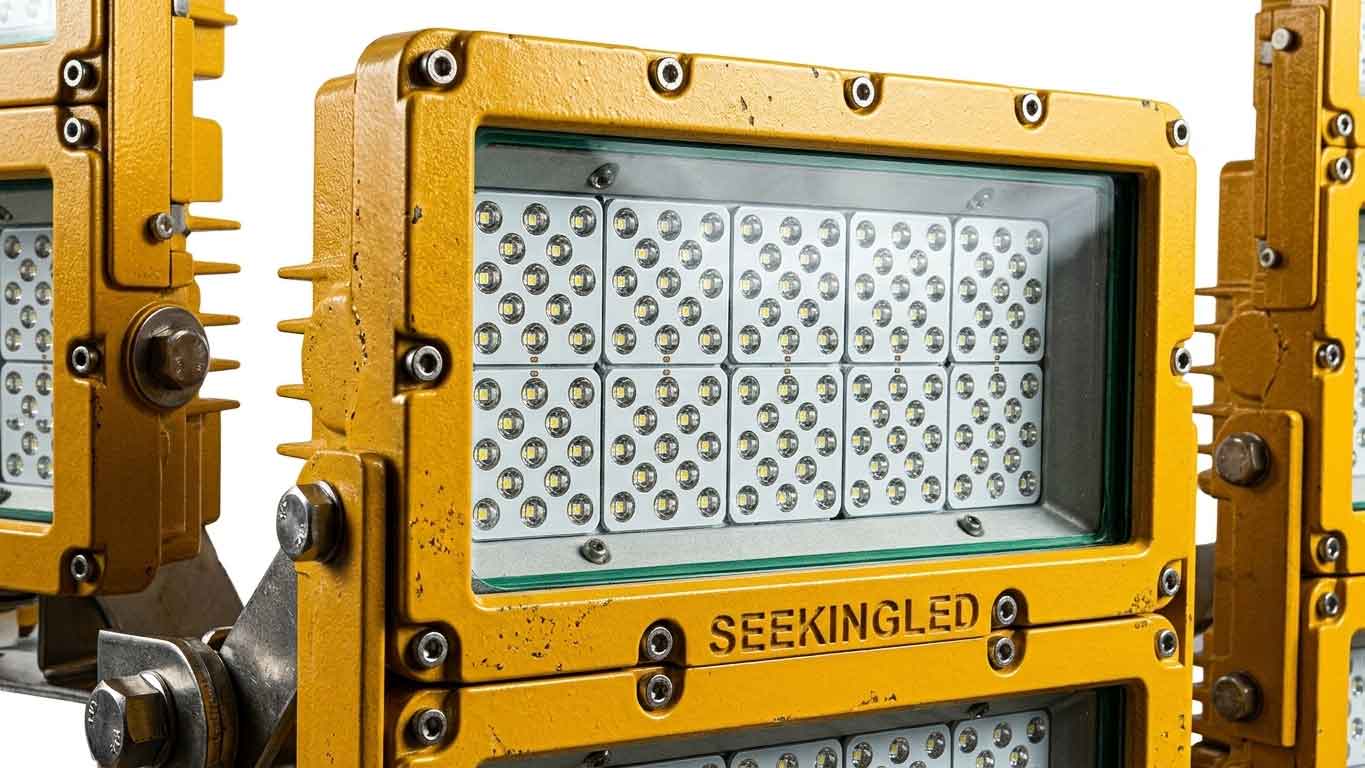

2. Sealed optical system、

Paint overspray is aggressive.

Quality fixtures include:

• Tempered glass lens (IK08–IK10)
• IP65–IP66 sealing
• Anti-chemical coatings

Without this, light output drops quickly—sometimes within months.

3. High CRI for color-critical work

Paint booths are visual environments.

Typical specs:

• CRI ≥ 80 (often 90+)
• 5000K–6500K color temperature

From field data, upgrading to high-CRI lighting reduced color mismatch claims by 15–20% in one automotive refinishing line.

4. Thermal management under sealed conditions

Explosion-proof fixtures trap heat.

So design must include:

• Efficient heat sinks
• Stable LED drivers
• Controlled junction temperatures

Poor thermal design = early lumen depreciation.

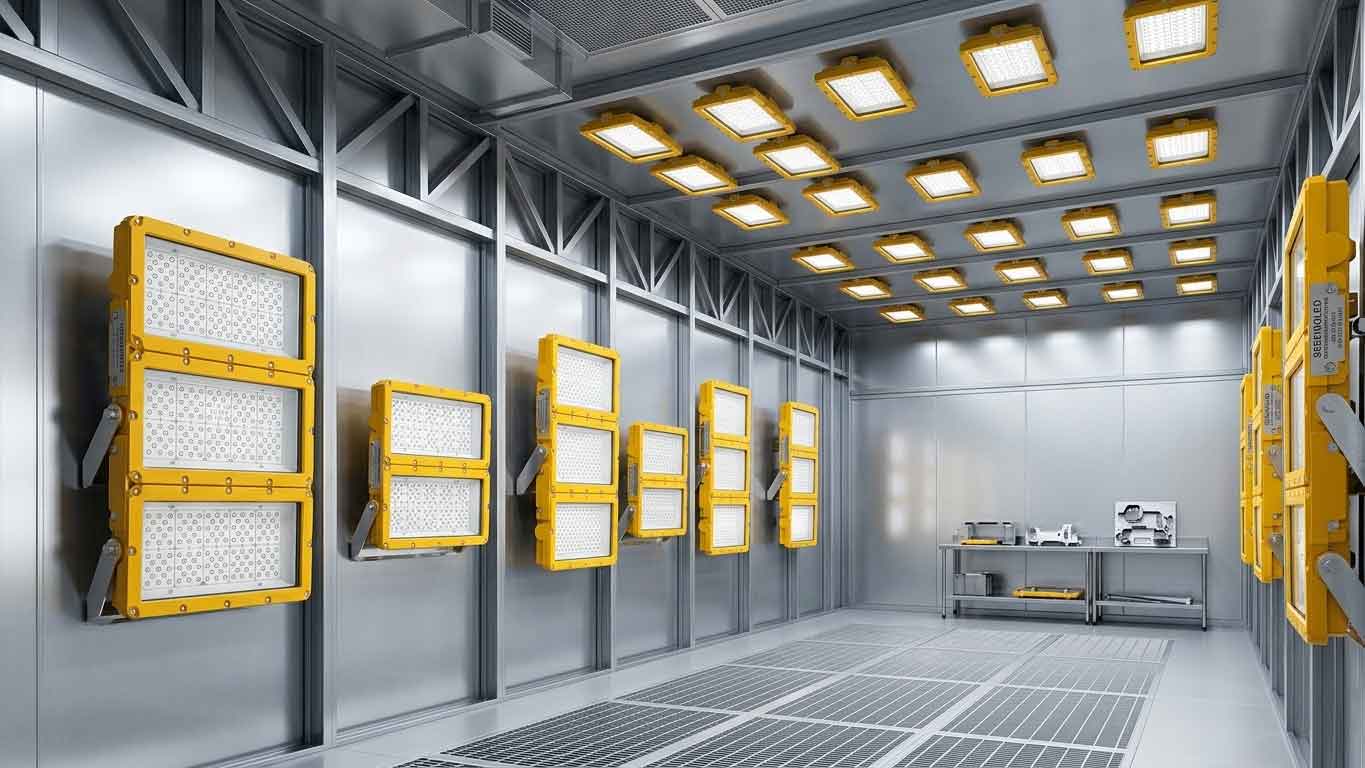

lighting layout strategies for paint booths

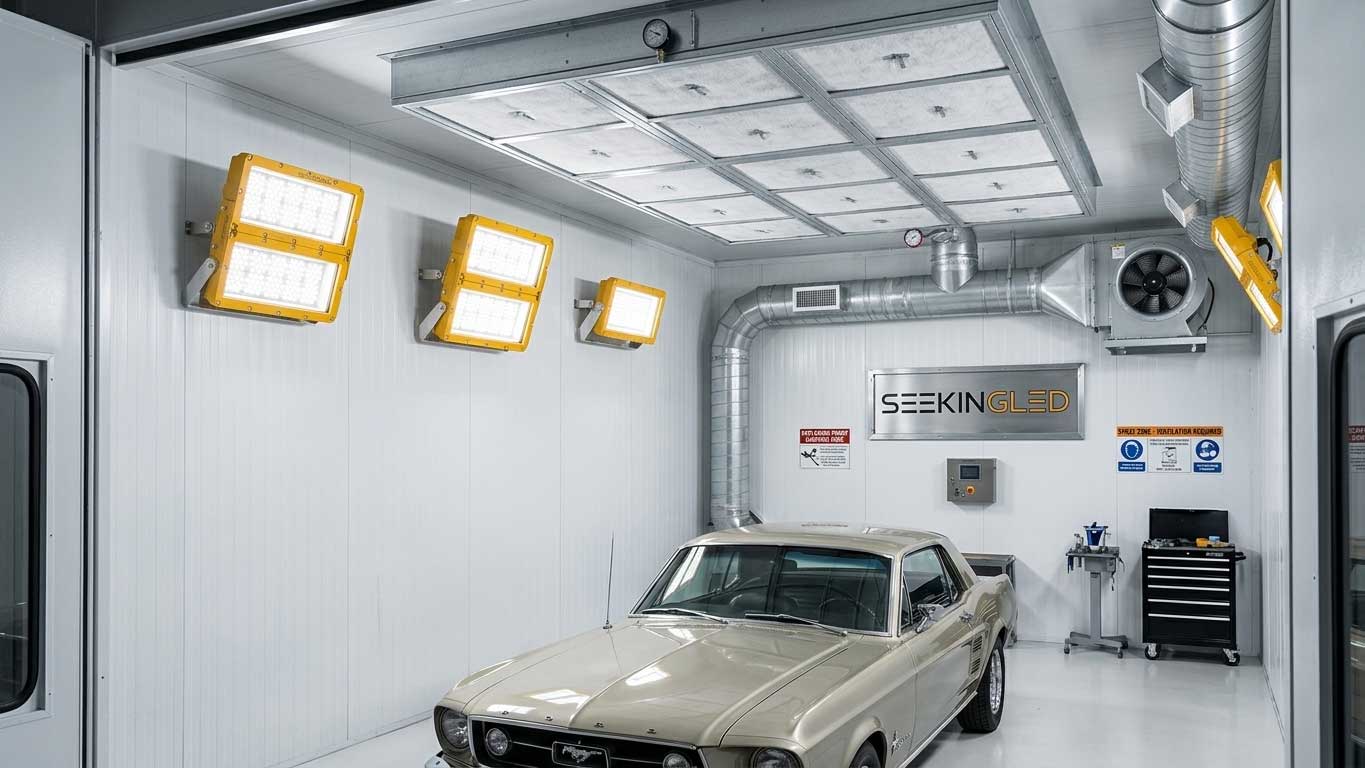

Vertical lighting is essential

Best practice includes:

• Side-mounted vertical fixtures
• Symmetrical placement on both walls

This reduces:

• Shadows on vehicle sides
• Missed surface defects

Ceiling lighting completes coverage

Overhead lights provide:

• Top-surface visibility
• Overall illumination balance

According to IES (Illuminating Engineering Society):

• 750–1000 lux for spraying
• Up to 1500 lux for inspection

common mistakes in selecting explosion proof lights for paint booth

Confusing “sealed” with “explosion-proof”

Sealed lights:

• Prevent dust ingress

Explosion-proof lights:

• Contain ignition sources

They are not the same.

Over-focusing on wattage

More watts ≠ better visibility.

What matters:

• Light distribution
• CRI
• Placement

I’ve seen 200W setups perform worse than well-designed 120W layouts.

Ignoring maintenance reality

Overspray accumulates fast.

If fixtures are hard to clean:

• Output drops
• Inspection quality suffers

In one workshop, poor maintenance access reduced effective lux by ~30% within a year.

comparison: explosion-proof vs standard paint booth lighting

Feature	Standard Lighting	Explosion Proof Lighting
Safety compliance	Limited	Full hazardous approval
Vapor protection	Basic sealing	Explosion containment
Lifespan stability	Moderate	High (with proper design)
Inspection quality	Inconsistent	High precision
Risk level	Elevated	Controlled

---

how SEEKINGLED designs for paint booth environments

From my direct involvement with SEEKINGLED systems, the focus is always on long-term reliability—not just initial brightness:

• High-density die-cast aluminum housing
• Precision-machined flame paths
• ≥100μm anti-corrosion coating
• Stable optical output over time

In one retrofit project, switching to SEEKINGLED explosion proof lights for paint booth reduced lighting-related inspection errors by over 12% within 3 months.

Not because the lights were brighter—but because they were consistent.

faq-Explosion Proof Lights for Paint Booth

Are explosion proof lights mandatory in paint booths?

Yes, in classified hazardous zones or when fixtures are directly exposed to vapors, according to NFPA 33.

Can LED lights be explosion-proof?

Yes—when designed with certified enclosures and tested to ATEX/IECEx standards.

What is the ideal CRI for paint booths?

At least 80, but 90+ is recommended for accurate color matching.

More content

• How to Choose the Right Explosion-Proof Light?
• explosion proof light fixture – What You Should Know Before Installing One
• LED Explosion Proof Lamp: What You Should Confirm Before Installing in Hazardous Areas
• Ex Proof Lighting Fixtures for Demanding Industrial Environments
• Explosion Proof Light Fixtures: Engineering Insight from the Field

author expertise

This article reflects hands-on experience across:

• Automotive paint booths
• Industrial coating facilities
• Hazardous vapor environments

Across multiple audits and installations, I’ve found that lighting layout and certification—not just product specs—determine real-world performance.

final insight

Explosion proof lights for paint booth are not just about safety compliance.

They directly affect what operators see—and what they miss.

And in finishing work, what you miss is what costs you.
