ATEX Lighting: What It Means and How to Choose the Right Solution

ATEX lighting refers to certified lighting equipment designed to operate safely in explosive atmospheres, preventing ignition by controlling sparks, heat, and electrical faults in hazardous environments such as oil, gas, and chemical facilities.

That’s the official definition.

On site, it’s simpler: if your lighting fails compliance, your entire area can fail inspection.

what is atex lighting and why it exists

ATEX is not a product — it’s a legal requirement

ATEX comes from the EU directive:

• ATEX 2014/34/EU (equipment directive)
• ATEX 1999/92/EC (workplace directive)

It regulates equipment used in explosive atmospheres.

According to the European Commission, all equipment used in such zones must be certified to prevent ignition sources.

That includes lighting—often overlooked until audits.

What makes lighting “ATEX compliant”

It’s not just a label. It means:

• Controlled surface temperature
• Sealed or flameproof enclosure
• Tested under fault conditions
• Certified by notified bodies

In other words, the fixture is designed assuming something will go wrong—and still remain safe.

atex zone classification explained

Gas zones (most critical)

ATEX defines hazardous areas by frequency of explosive atmosphere:

• Zone 0 – continuous presence
• Zone 1 – likely during operation
• Zone 2 – occasional or short-term

Lighting must match the zone.

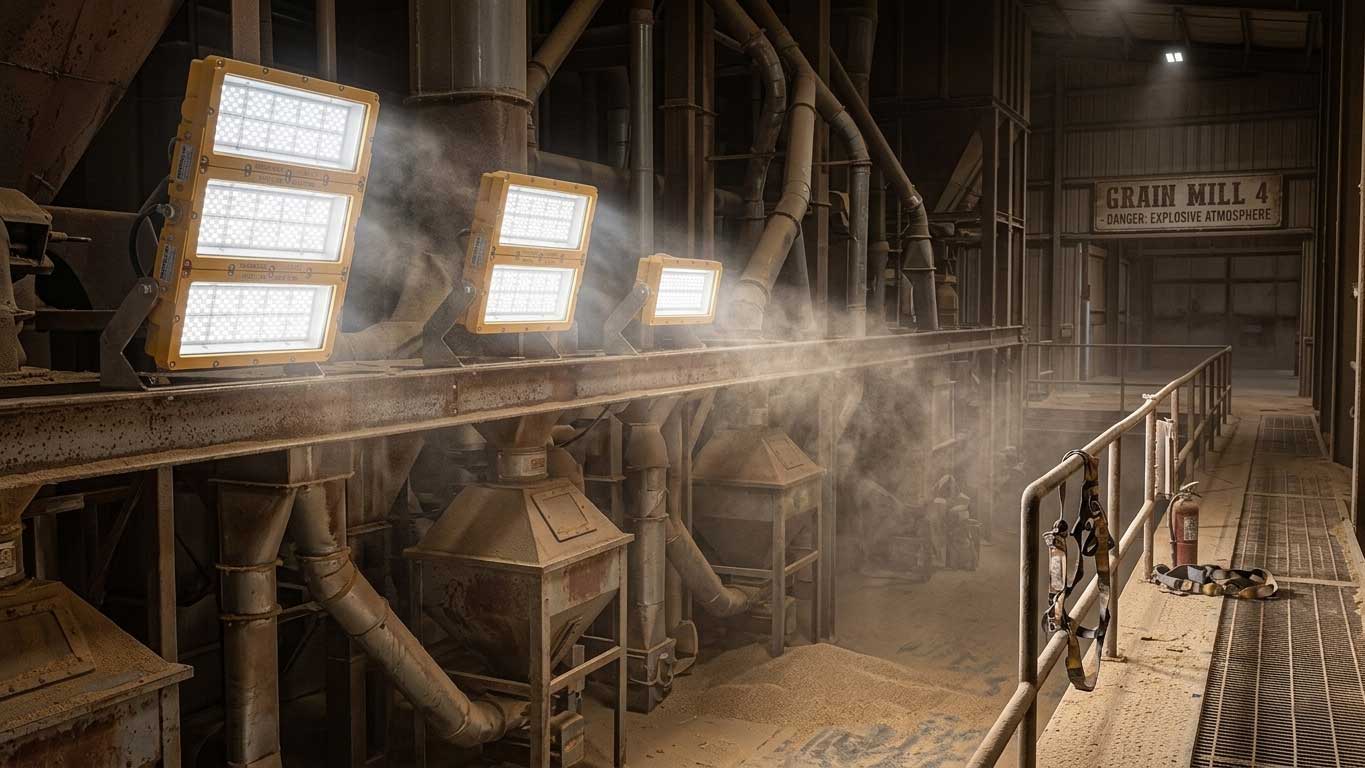

Dust zones (often underestimated)

• Zone 20 / 21 / 22

Grain plants, cement factories, and woodworking sites fall here.

Dust explosions are less visible—but just as dangerous.

According to UK HSE (Health and Safety Executive), dust explosions account for a significant portion of industrial incidents.

key components of atex lighting systems

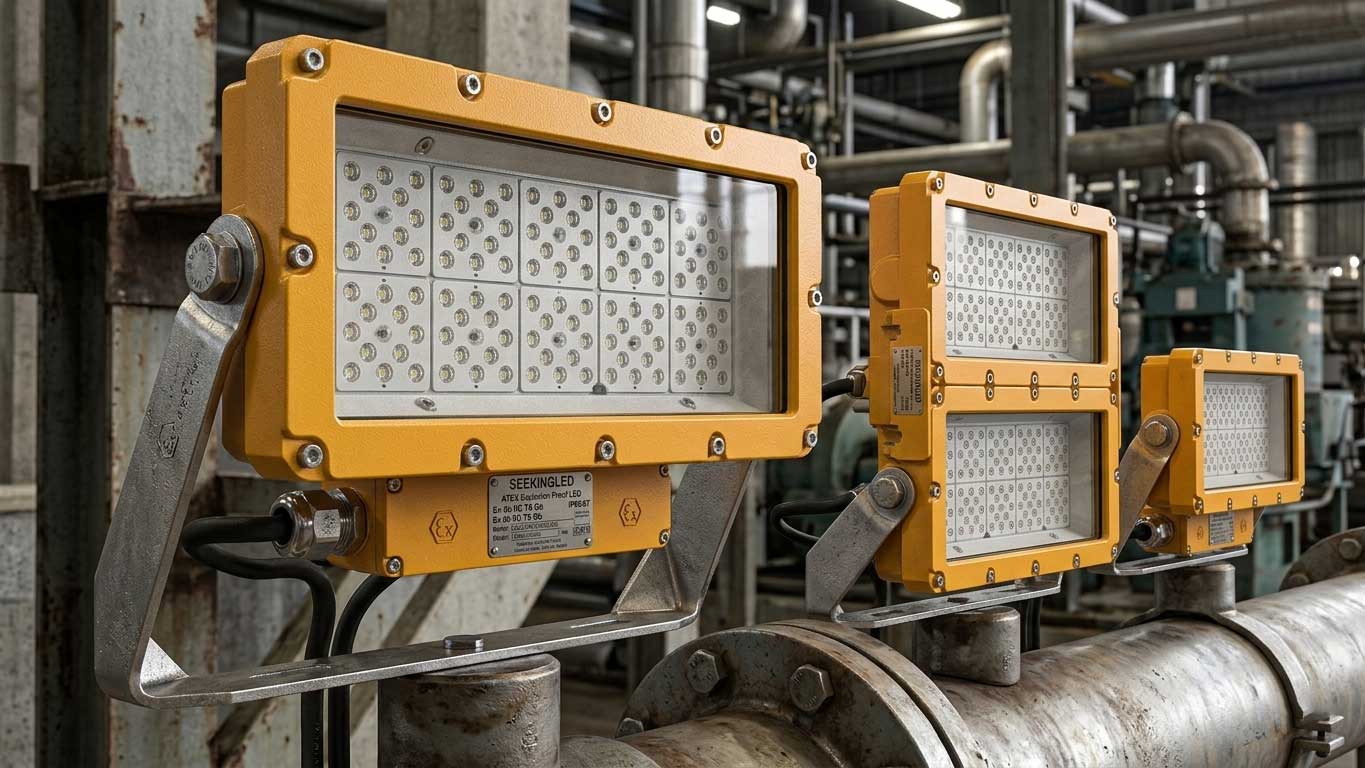

1. Explosion-proof enclosure

Typically made from:

• Die-cast aluminum
• Stainless steel

Designed to:

• Contain internal explosions
• Prevent flame propagation

2. Temperature control (T-rating)

Each fixture has a temperature class:

• T1 to T6

Example:

• T6 = max 85°C surface temperature

This matters because many gases ignite below 200°C.

3. Sealing and ingress protection

ATEX lighting usually features:

• IP66 / IP67 / IP69K
• Anti-corrosion coatings

Especially important in:

• Offshore environments
• Chemical plants

real-world performance: what actually matters

Heat management vs lifespan

According to the U.S. Department of Energy, LED lifetime drops significantly when operating temperature increases.

In hazardous areas:

• Heat is not just a lifespan issue
• It’s a safety risk

Field insight

In one refinery retrofit I worked on:

• Old fixtures overheated after 6 hours
• ATEX-certified LED replacements ran stable for 12+ hours

No shutdowns. No alarms.

That difference isn’t visible in a catalog.

comparison: standard vs atex lighting

Feature	Standard Lighting	ATEX Lighting
Certification	None	ATEX / IECEx
Safety	Low in hazardous zones	High
Temperature Control	Limited	Strict
Application	General use	Explosive environments
Cost	Lower upfront	Higher, but compliant

how SEEKINGLED approaches atex lighting

Beyond certification — real environment design

From my experience with SEEKINGLED systems:

• High-pressure die-casting for structural strength
• Anti-corrosion coatings for long-term exposure
• Precision flame paths
• Stable LED drivers under fluctuating voltage

In offshore and chemical projects, failure rates dropped noticeably after switching.

common mistakes when selecting atex lighting

Mismatch between zone and certification

Using Zone 2 lights in Zone 1 areas is a common error.

It passes visually—but fails compliance.

Ignoring maintenance conditions

Paint, dust, and corrosion can:

• Block heat dissipation
• Damage seals

ATEX lighting must be maintainable, not just installable.

quick checklist before buying

Always confirm:

• ✔ ATEX certification marking
• ✔ Correct zone rating
• ✔ Temperature class (T rating)
• ✔ IP protection level
• ✔ Material suitability (corrosion, humidity)

faq about ATEX lighting

Is ATEX lighting mandatory?

Yes, in EU hazardous areas, ATEX compliance is legally required.

What’s the difference between ATEX and IECEx?

ATEX is EU regulation; IECEx is international certification—but both follow similar technical standards.

Can ATEX lighting be used outside hazardous areas?

Yes, but it may be unnecessarily costly for normal environments.

More content

• How to Choose the Right Explosion-Proof Light?
• explosion proof light fixture – What You Should Know Before Installing One
• LED Explosion Proof Lamp: What You Should Confirm Before Installing in Hazardous Areas
• Ex Proof Lighting Fixtures for Demanding Industrial Environments
• Explosion Proof Light Fixtures: Engineering Insight from the Field

author expertise

This article is written based on practical experience from a SEEKINGLED hazardous-area lighting engineer, including:

• 10+ years in explosion-proof lighting
• Field installations across refineries and offshore platforms
• Direct involvement in ATEX product validation and testing

Most failures I’ve seen weren’t design flaws.

They were wrong selection decisions.

final insight

ATEX lighting is not about brightness.

It’s about controlled risk.

And in hazardous environments,
the right fixture doesn’t just illuminate the space—
it protects everything inside it.
