View detailsExplosion Proof Light Fixture Guide & Standards
An explosion proof light fixture is a sealed, certified lighting device designed to contain internal sparks or heat, preventing ignition of flammable gases, vapors, or dust in hazardous environments.
That’s the formal definition.
On-site, though, the conversation is different: it’s about whether that fixture still performs safely after years of corrosion, vibration, heat cycles—and human handling.
what is an explosion proof light fixture really designed to do
Containment, not prevention
There’s a persistent misunderstanding: explosion-proof fixtures don’t “stop explosions.”
They contain them internally.
According to IEC 60079-1 (Flameproof Enclosures):
- Internal ignition is allowed
- Flame must not escape the enclosure
- Surface temperature must stay below ignition thresholds
That distinction matters. Engineers who misunderstand this often overspecify brightness—and underspecify enclosure integrity.
Why this matters in real facilities

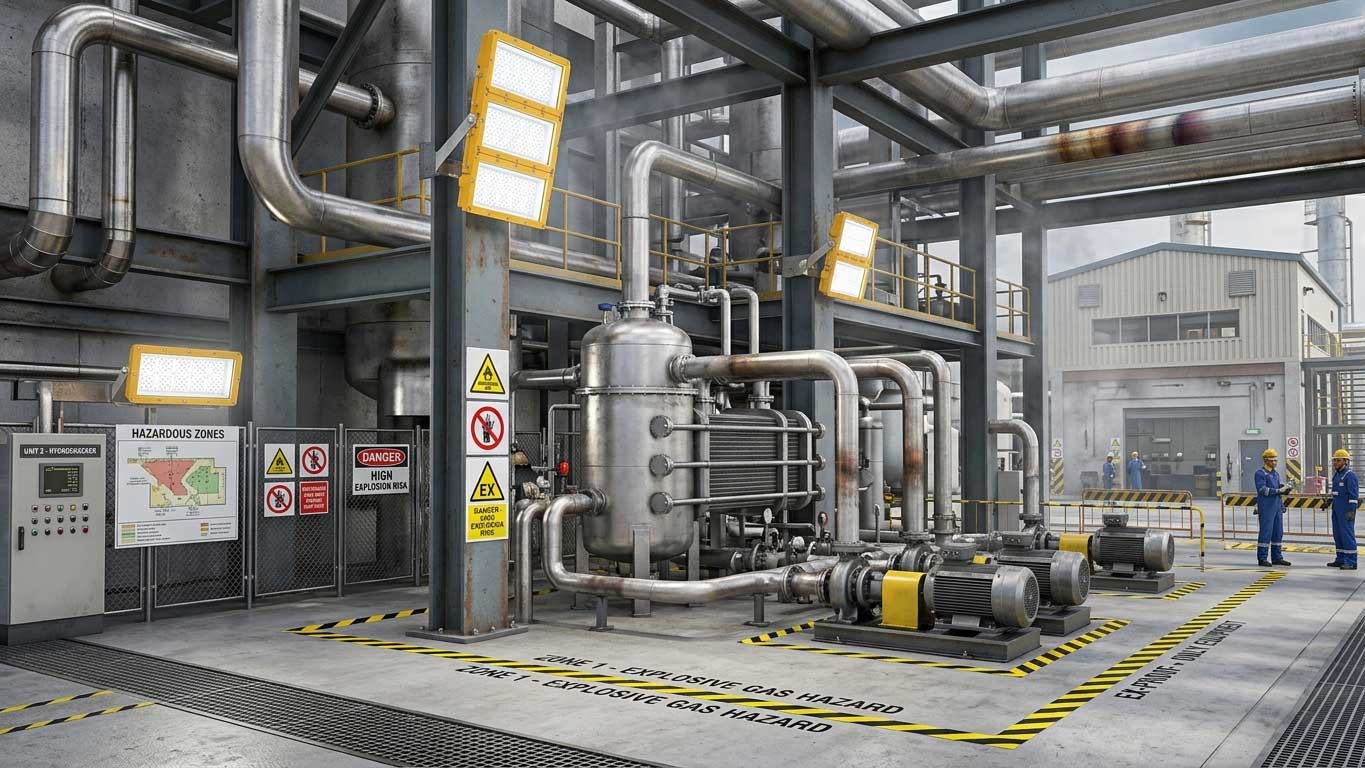

In petrochemical plants, paint booths, or grain silos, ignition sources are unavoidable:
- Electrical arcs
- Component overheating
- Static discharge
The fixture’s job is not to eliminate these—but to ensure they never interact with the external explosive atmosphere.
key components of an explosion proof light fixture
1. High-strength enclosure
Most fixtures use:
- Die-cast aluminum alloy
- Stainless steel (for marine or corrosive environments)
According to the Aluminum Association, aluminum alloys offer strong heat dissipation—critical for LED stability.
But field reality is harsher:
- Poor casting → internal porosity
- Weak structure → pressure failure
- Coating defects → corrosion ingress
I’ve seen fixtures pass certification—but fail after 18 months due to coating breakdown in coastal environments.

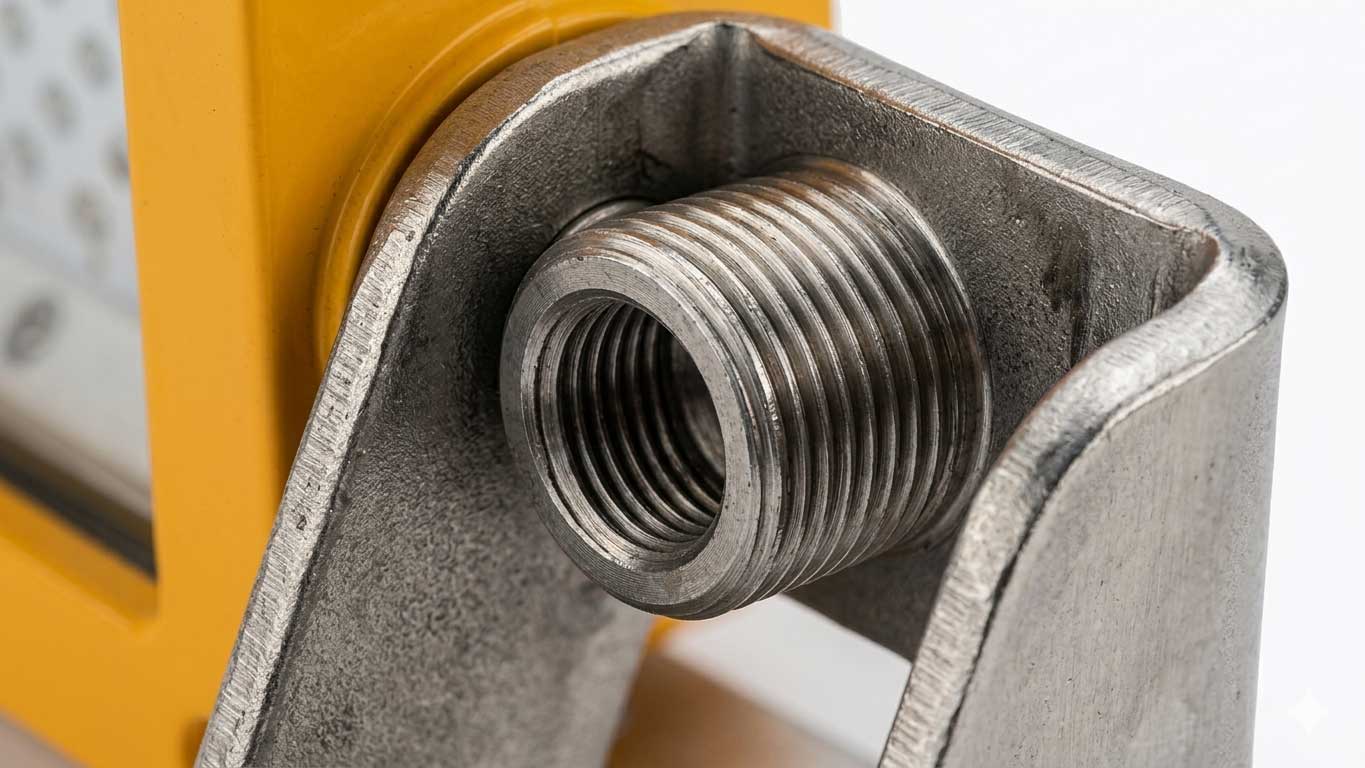

2. Flameproof joints (the invisible core)
This is where real engineering happens.
Features include:
- Precision-machined threaded joints
- Controlled flame paths
- Tight tolerances (often <0.2 mm gaps)
Even minor scratches can compromise safety.
3. Sealing system
Explosion-proof doesn’t mean waterproof—but most designs include both.
Typical specs:
- IP66 → dust-tight, water jets
- IP67 → temporary immersion
- IP69K → high-pressure wash
According to IEC 60529, these ratings define environmental protection levels.
In food or paint environments, IP69K becomes essential—not optional.
4. Optical system
Includes:
- Tempered glass lens
- Impact rating IK08–IK10
According to IEC 62262 (IK ratings):
- IK10 → withstands 20 joules of impact
This is why plastic lenses are rarely used in certified explosion-proof fixtures.
hazardous area classifications you must understand
ATEX / IECEx zones
| Zone | Description |
|---|---|
| Zone 0 | Continuous explosive atmosphere |
| Zone 1 | Occasional presence |
| Zone 2 | Rare, short-term presence |
NEC Class/Division system
| Class/Division | Meaning |
|---|---|
| Class I Div 1 | Gas present frequently |
| Class I Div 2 | Gas present abnormally |
According to NFPA 70 (National Electrical Code), equipment must match classification exactly.
materials used in explosion proof light fixture construction
Material comparison
| Material | Strength | Corrosion Resistance | Heat Dissipation |
|---|---|---|---|
| Aluminum alloy | High | Medium | Excellent |
| Stainless steel 304 | Very High | High | Moderate |
| Stainless steel 316 | Very High | Very High | Moderate |
Field insight
In one offshore project:
- Aluminum fixtures lasted ~2 years
- 316 stainless extended lifespan beyond 5 years
Material choice isn’t cost—it’s lifecycle strategy.
how to choose the right explosion proof light fixture
Key decision factors
- Hazardous classification (Zone / Division)
- Temperature class (T1–T6)
- Environmental exposure (salt, chemicals, dust)
- Mounting height and lighting distribution
Common mistakes
- Choosing based on wattage only
- Ignoring certification markings
- Underestimating cleaning conditions
I’ve seen installations where perfectly certified fixtures failed—not because of design, but because they weren’t built for daily high-pressure washdowns.
how SEEKINGLED designs explosion proof light fixture systems
Engineering focus
SEEKINGLED fixtures emphasize:
- High-density die casting
- Precision flame paths
- Anti-corrosion coatings (>100μm)
- Full ATEX & IECEx compliance
Real deployment outcome
In a solvent storage facility retrofit:
- Maintenance calls reduced by ~38%
- Fixture failure rate dropped significantly
The difference wasn’t brightness—it was structural integrity.
performance comparison table
| Feature | Explosion Proof Fixture | Standard Industrial Light |
|---|---|---|
| Safety | Certified containment | No protection |
| Durability | High | Moderate |
| Maintenance | Lower | Higher |
| Cost | Higher upfront | Lower upfront |
faq about explosion proof light fixture
Can explosion proof light fixtures explode?
No. They are designed to contain internal explosions safely.
Are they waterproof?
Most are highly sealed (IP66+), but waterproofing depends on rating.
Do they require special maintenance?
Yes. Regular inspection of seals and joints is critical.
More content
- How to Choose the Right Explosion-Proof Light?
- explosion proof light fixture – What You Should Know Before Installing One
- LED Explosion Proof Lamp: What You Should Confirm Before Installing in Hazardous Areas
- Ex Proof Lighting Fixtures for Demanding Industrial Environments
- Explosion Proof Light Fixtures: Engineering Insight from the Field
author experience
This article reflects practical work across:
- Petrochemical storage sites
- Paint spray facilities
- Coastal industrial plants
Across multiple audits, one pattern stands out:
Over 30% of fixture failures were due to:
- Poor sealing
- Material degradation
- Installation errors
—not LED failure.
final insight
When evaluating an explosion proof light fixture, don’t start with lumens.
Start with:
Will this enclosure still protect the environment after years of stress, corrosion, and maintenance cycles?
Because in hazardous areas,
the fixture isn’t just lighting equipment.
It’s part of the safety system itself.
