explosion proof lighting requirements

Explosion proof lighting requirements demand certified fixtures, robust enclosures, proper temperature control, and compliance with standards like NEC, ATEX, and IECEx to safely operate in hazardous environments.

That’s the baseline.
But compliance in the field is rarely about ticking boxes—it’s about whether the fixture still performs after years of heat, gas exposure, and maintenance wear.

what defines explosion proof lighting requirements

It starts with hazard classification

Before selecting any fixture, the environment must be classified.

Two major systems:

• NEC (North America): Class / Division
• ATEX / IECEx (International): Zone system

Examples:

• Class 1 Division 1 → continuous gas presence
• Zone 1 → likely explosive atmosphere during operation

According to NFPA 70 (National Electrical Code), equipment must match the exact classification—no substitutions.

Field reality

In one chemical plant audit, lighting passed visual inspection—but failed compliance.

Why?

• Wrong classification (Zone 2 fixtures installed in Zone 1 area)

The fixtures worked.
They just weren’t allowed to.

core technical requirements for explosion proof lighting

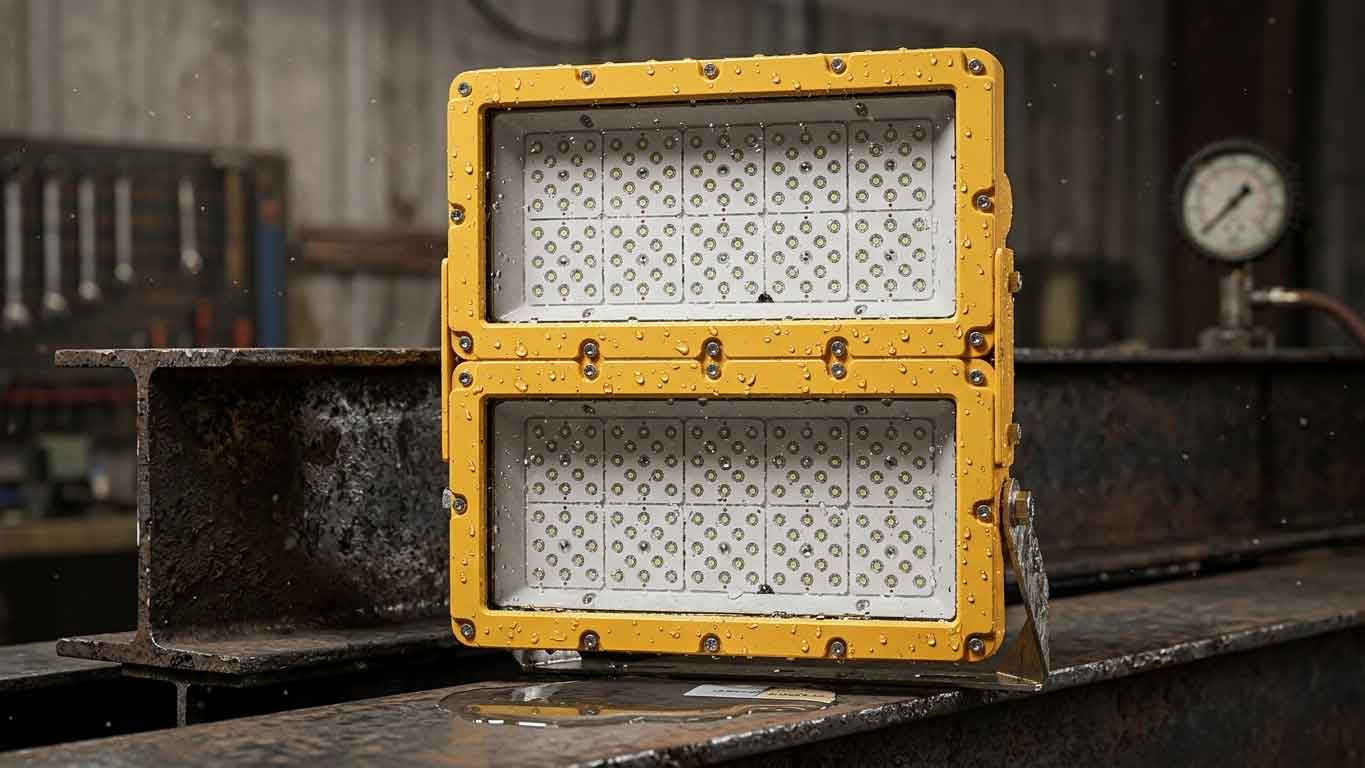

1. Certified explosion-proof enclosure

Fixtures must:

• Contain internal explosions
• Prevent flame propagation

Standards include:

• IEC 60079-1 (Flameproof “Ex d”)
• UL844 (Hazardous Locations)

The enclosure is not just a shell—it’s the safety barrier.

2. Temperature class (T-rating)

Each fixture must operate below ignition temperature of surrounding gases.

Example:

• T6 → max surface temperature ≤85°C

According to IEC standards, exceeding temperature limits can ignite gases even without sparks.

3. Ingress protection (IP rating)

Explosion proof lighting must resist:

• Dust
• Moisture
• Corrosive substances

Typical ratings:

• IP66 → dust-tight, strong water jets
• IP67 → temporary immersion

In harsh environments, this becomes critical.

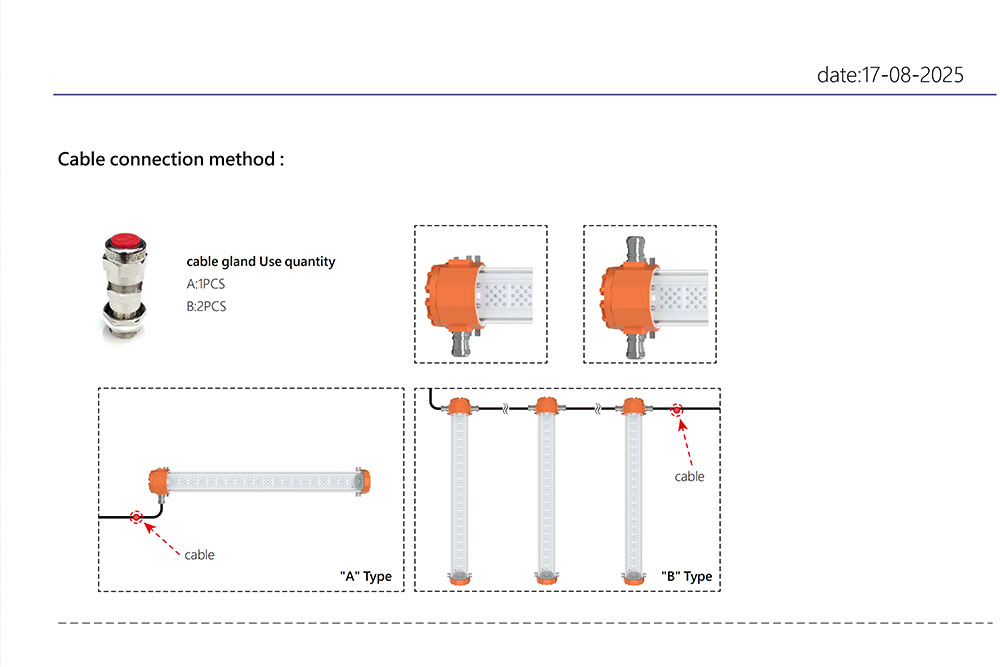

4. Proper wiring and installation

Requirements include:

• Certified cable glands

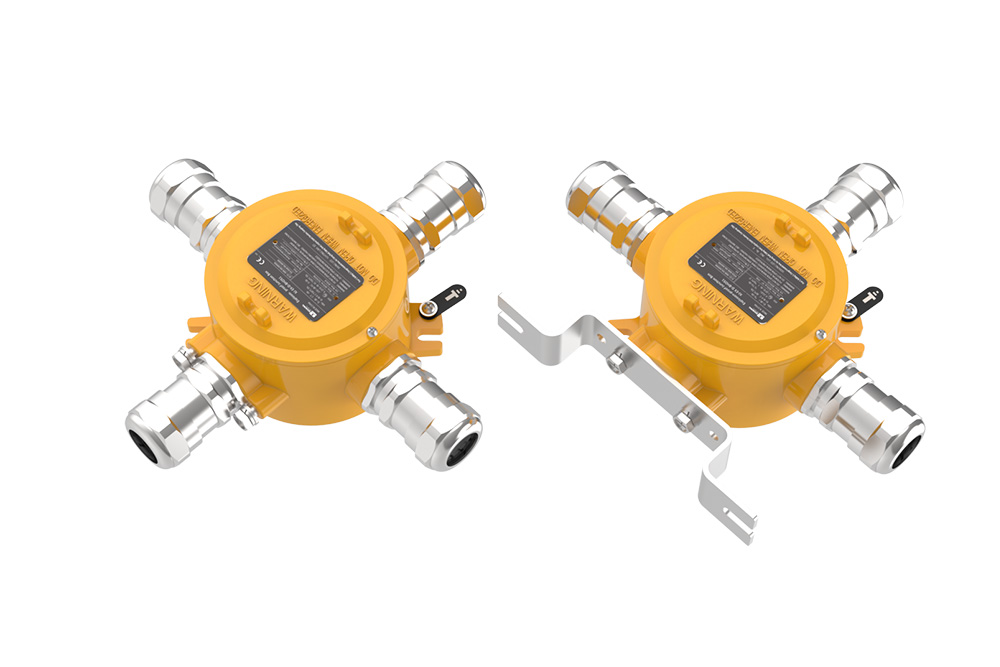

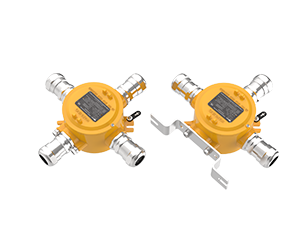

• Explosion-proof junction boxes
• Grounding and bonding

According to OSHA guidelines, improper installation is a leading cause of hazardous-area failures.

standards that govern explosion proof lighting requirements

Key global standards

• NFPA 70 (NEC) – U.S. electrical code
• ATEX Directive 2014/34/EU – Europe
• IECEx Scheme – International certification
• UL844 – Hazardous location luminaires

These standards define:

• Design
• Testing
• Certification

They are not interchangeable—compliance depends on project location.

comparison of major certification systems

System	Region	Classification Method	Example
NEC	North America	Class/Division	Class 1 Div 1
ATEX	Europe	Zone	Zone 1
IECEx	Global	Zone	Zone 1

common compliance mistakes

What I see most often

• Using non-certified fixtures
• Ignoring temperature class
• Mixing incompatible components
• Poor maintenance after installation

In one inspection, over 25% of fixtures failed due to installation errors—not product defects.

how SEEKINGLED meets explosion proof lighting requirements

Engineering approach

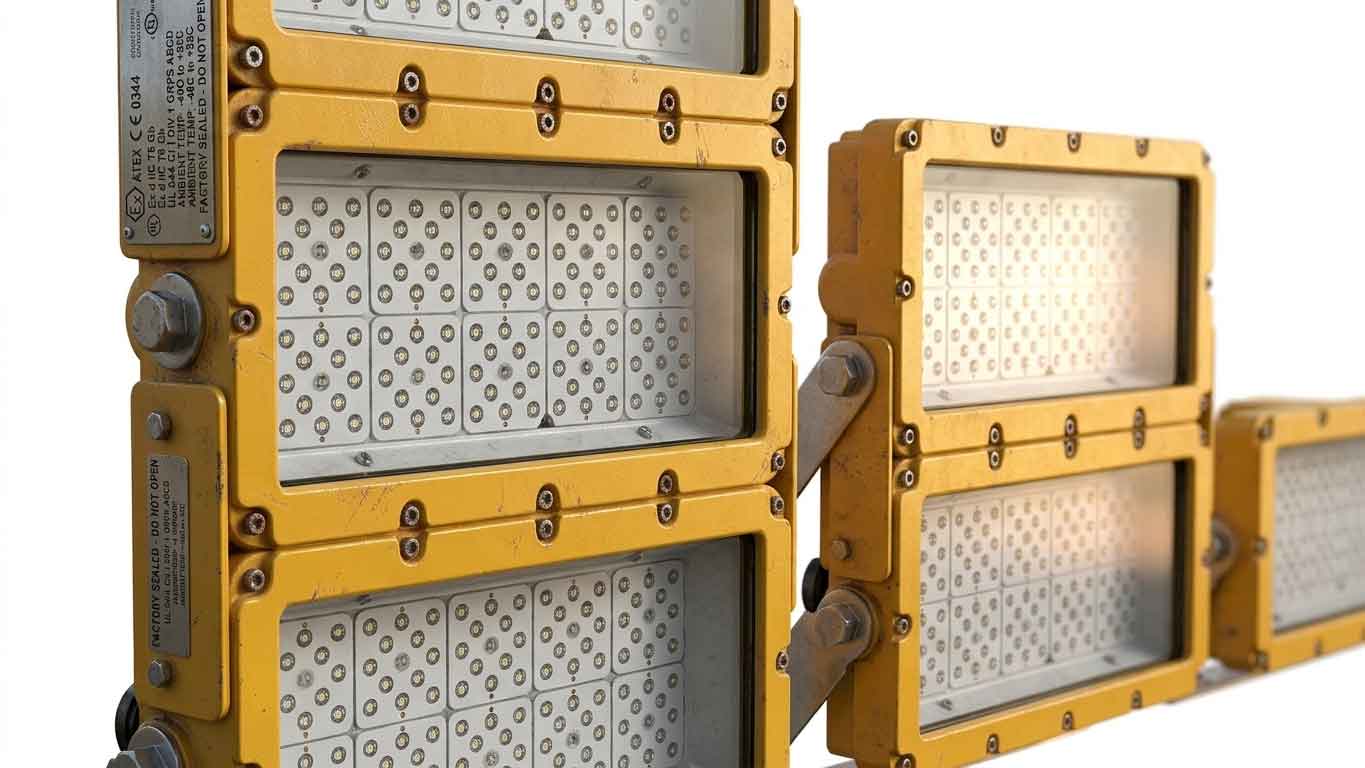

SEEKINGLED fixtures are designed with:

• Certified explosion-proof structures (Ex d, Ex db eb mb)
• High-strength aluminum or stainless steel housing
• Precision-machined flame paths
• High IP protection (IP66–IP67+)

Real project outcome

In a hazardous warehouse upgrade:

• Replaced mixed fixtures with SEEKINGLED certified units
• Achieved full compliance
• Reduced maintenance calls by over 35% in one year

faq-explosion proof lighting requirements

Are explosion proof lights required in all hazardous areas?

Yes, if flammable gases or dust are present under classified conditions.

What happens if requirements are not met?

Risk of ignition, failed inspections, and legal liability.

Do LED lights meet explosion proof requirements?

Only if specifically certified—standard LEDs are not sufficient.

More content

• How to Choose the Right Explosion-Proof Light?
• explosion proof light fixture – What You Should Know Before Installing One
• LED Explosion Proof Lamp: What You Should Confirm Before Installing in Hazardous Areas
• Ex Proof Lighting Fixtures for Demanding Industrial Environments
• Explosion Proof Light Fixtures: Engineering Insight from the Field

author expertise

This article is based on real project experience from SEEKINGLED engineers involved in:

• Hazardous area classification
• Industrial lighting retrofits
• Explosion-proof certification compliance

Across multiple audits, improper installation—not product design—has consistently been the weak point.

final insight

Understanding explosion proof lighting requirements isn’t just about standards.

It’s about recognizing that in hazardous environments,
every component—from housing to installation—defines the safety boundary.
